Smart Align—a new tool for robust non-rigid registration of scanning microscope data

Abstract

Many microscopic investigations of materials may benefit from the recording of multiple successive images. This can include techniques common to several types of microscopy such as frame averaging to improve signal-to-noise ratios (SNR) or time series to study dynamic processes or more specific applications. In the scanning transmission electron microscope, this might include focal series for optical sectioning or aberration measurement, beam damage studies or camera-length series to study the effects of strain; whilst in the scanning tunnelling microscope, this might include bias-voltage series to probe local electronic structure. Whatever the application, such investigations must begin with the careful alignment of these data stacks, an operation that is not always trivial. In addition, the presence of low-frequency scanning distortions can introduce intra-image shifts to the data. Here, we describe an improved automated method of performing non-rigid registration customised for the challenges unique to scanned microscope data specifically addressing the issues of low-SNR data, images containing a large proportion of crystalline material and/or local features of interest such as dislocations or edges. Careful attention has been paid to artefact testing of the non-rigid registration method used, and the importance of this registration for the quantitative interpretation of feature intensities and positions is evaluated.

Background

Scanning microscopes are unique in that they allow for the recording of multiple signal types, often concurrently, all of which are spatially resolved. For the study of material science, some of the most powerful families of instruments used are the aberration-corrected scanning transmission electron microscope (STEM), the scanning tunnelling microscope (STM) and atomic force microscope (AFM). Each of these valuable research tools is capable of yielding several imaging and spectroscopic signals, often in parallel, at atomic resolution. To retrieve these spatially resolved signals, a scanned probe of either electrons or a physical tip is used, in contrast with the parallel illumination in conventional transmission electron (TEM) or optical microscopy. However, in each case, this serial acquisition comes with a penalty, as typical acquisition times can be up to tens of seconds long depending on the image dimensions and scanning speed. At these acquisition times, the operator has to worry about correcting not only image offsets from stage/sample drift [16] (for example from thermal expansion) but also low-frequency distortions that can perturb the image locally [79]. Still, further problems can arise from incorrect instrument scan generator calibration [10]. These offsets and distortions then require correction by so-called rigid and non-rigid registrations.

Here, we present a new automated software for the robust non-rigid registration of serial microscopy data. First, in the Non-rigid registration section, non-rigid registration will be introduced along with some of the challenges specifically applicable to high-resolution microscopy. Next, we describe the prior knowledge from the scanned nature of serial microscopy and how this can be used to design improved registration algorithms. In the Evaluation of the non-rigid performance section, the proposed methods are evaluated quantitatively with special interest paid to the frequency range of instabilities that can be corrected, the correction of small sample rotations and the robustness to registration artefacts. Lastly, in the Application to quantitative imaging section, some applications of the new tool are presented, including: fidelity of quantitative annular dark-field (ADF) intensity and structural data as well as applications to scanning tunnelling microscopy (STM). Whilst not discussed here explicitly, the methods developed are also applicable to other scanned microscopies such as atomic force microscopy.

Frequency purview of image registration methods

Before presenting our new algorithm, it is worth considering the wider background of image registration regimes. Serial acquisition artefacts can be broadly grouped into low-, intermediate- and high-frequency issues and are often referred to as sample/image drift, scan distortion and scan noise, respectively. Various methods have been proposed to correct for these distortions, with the approach tailored to the frequency range of the issue (Fig. 1).

Fig. 1
figure 1

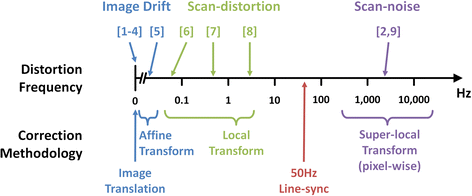

Scanned image artefact types, frequency ranges and remedies

Rigid registration is the most simple of all the transformations as one data is purely translated with respect to another; that is, all points in the data are shifted by the same vector. Many techniques have been proposed for this, using cross-correlation, mutual information [11] or Fourier space analysis [12, 13]. In this work, we will not comment on the well-established rigid registration (further background in [14]); instead, we will focus on dynamic distortions and non-rigid registration.

Perhaps, the most commonly observed corruption of atomic resolution serial-acquired data is image drift. This is observable as a shearing of the known crystallographic angles which becomes worse with slower scans (longer total frame time) or faster stage drift. One approach to correcting this in STEM is to compare the serial data with its conventional TEM counterpart. Using this, an affine transformation can be defined that corrects for the observed drift [1]. Whilst this is useful in that it can be performed on a single STEM image, this approach requires a mode change of the instrument making it challenging or impossible to work with the same region of interest. Another recent approach has been to precess the instrument’s scan rotation, thus varying the angle between the drift vector and the slow-scan direction (most sensitive to drift). This may be a comparison of two data recorded with perpendicular scans [615], or with a sweep of many scan directions [5] or even spiral scans [16]. In general, these measurements assume the drift rate remains constant although in [5], the authors demonstrated an adaptation to include a slowly decaying drift rate. This adaptation then extends the scope of affine corrections from the ‘zero-frequency’ of constant drift to the few tens of image frames per cycle, say 0.005 Hz. To consider any image distortion frequency higher than this, affine transformations can no longer be used and we must consider non-rigid registration.

Non-rigid registration

Non-rigid image registration refers to the transformation of imaging data from one coordinate set to another. Unlike simple affine transformations (translation, rotation, dilation, shearing etc.), non-rigid transformations do not necessarily preserve straight lines as different sub-regions of images may move by differing vectors. Such non-rigid registration has many applications in imaging where either the object or recording process vary over time including remote sensing [17], medical imaging [18, 19] and astronomy and photography [20]. In serial microscopy, the same challenges can be encountered, with dynamic sample behaviour and instrumental instabilities both contributing to erroneous data offsets.

Non-rigid registration approaches in serial microscopy

Many approaches for non-rigid registration exist in other fields [14]; however, its use in microscopy is relatively recent, and few generalised methods exist. One approach is to record experimental image series (time series) from which the effects of time-varying distortions and persistent sample information can be separated. These data can be reregistered by defining the so-called control points that appear in both data and determining a transformation operator to map these to each other. However, here, manual input is generally necessary in defining the control points which can be challenging and hampers automation. Instead, an alternative ‘gradient descent’ method, where the differences between images are used to directly infer the direction of local motion [718], is well suited to automation and is what is discussed here.

In the gradient descent method, the differences between the gradients of two grayscale images are used to suggest the displacement field between them. The displacement map is applied to the ‘moving’ image. The images are compared again and a new displacement field calculated (smaller than the first) which is added to the displacements already measured. In this way, the cumulative displacement needed to register the two images is built up iteratively. Estimating the displacement is an unconstrained problem and can lead to abrupt discontinuities in displacement and so requires a regulariser. In Berkels et al. [7], the Dirichlet energy of the displacement map is used as the regulariser in a variational approach with a gradually reducing domain over which the Dirichlet energy is calculated. Importantly, and especially relevant to images of periodic structures such as atomic resolution micrographs, the transformation field must be smoothed sufficiently that no crystallographic features are seen in the diagnosed displacement field; if such periodicity is observable, then this represents an artefact of the diagnosis procedure itself and may compromise the final result. Here, we devise and apply a regularisation approach specifically tailored for scanned images.

Non-rigid registration challenges

There are several effects that can impede the accurate registration of images including some challenges that are unique to atomic resolution micrographs. These can be sample related to the following:

  • Strong periodicity in the sample (crystallinity)

  • Local structure variations that are genuine features (not distortions) which must be preserved

  • Structural changes in the sample due to sample rotation, dynamic processes or damage effects [21, 22],

  • Changes in a STEM image’s constant background from contamination etc. or in STM/AFM from tip-height changes.

or imaging related to the following:

  • Limited image signal-to-noise ratio (SNR)

  • A large constant background to the data (sometimes called ‘black-level’ or ‘D.C. offset’)

  • Low-frequency (a few cycles per frame time) scan distortion

  • Changes in image appearance during STEM focal series from residual aberrations [23]

  • Changes in the image’s dynamic range or contrast during STEM focal [24] or camera-length series [25] or STM bias-voltage series [26]

Methods

The non-rigid method used in this work is based on the so-called gradient descent technique where the differences in the gradients of two image data are used to diagnose the position varying offsets between them. Specifically, the accelerated ‘demons’ method [27] based on the work of Cachier et al. [18] and Wang et al. [19] where more detailed background mathematics is described. Figure 2 shows an outline of the method used which will first be discussed before presenting experimental results.

Fig. 2
figure 2

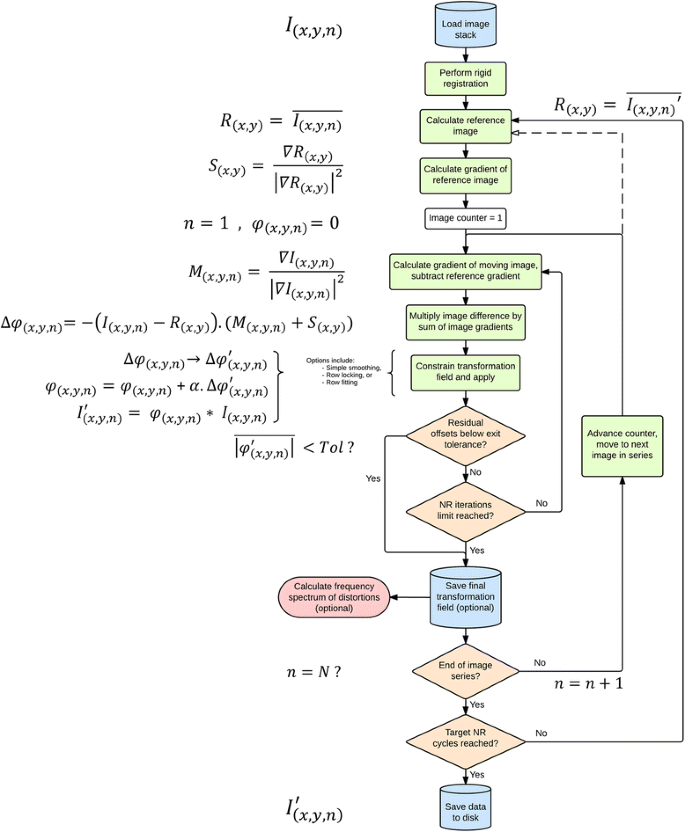

Flow diagram of the non-rigid registration software algorithm. See the main text for a description of the symbols. The dashed line represents an optional intra-loop update of the reference image

Figure 2 shows the data set I (x,y,n) being imported from disc, but in principle, the method can be modified to run in real time during data acquisition. Notation here is that images have lateral dimensions x-y and a counting index n. In the discussion presented here, the data are assumed to have already been rigid registered [1113]. An initial reference image, R (x,y), is calculated by simply taking the mean through the image series. The normalised x and y gradient of this ‘static’ image, S, is calculated outside of the image series loop. Within the innermost iterative loop, the same normalised gradient is calculated, M (x,y,n), this time for the moving (nth) image. The difference between the intensity of the moving and static images, multiplied by the sum of the gradients, then yields the incremental transformation field Δφ (x,y,n).

Next, the incremental transformation field Δφ (x,y,n) must be constrained in some way to yield a modified version of itself. The most simple modification would be smoothing to avoid discontinuities; tailoring the extent of this smoothing and more advanced treatments are discussed later. This yields the constrained incremental transformation field, Δφ’ (x,y,n), which indicates the non-rigid displacement field needed to bring the moving image towards registry with the reference. On the first loop of this innermost iteration, this represents the entire transformation measurement, φ (x,y); for subsequent iterations, the incremental transformation field is multiplied by a constant α added to this.

This constant allows the ‘aggressiveness’ of the solution convergence to be adjusted; too small and the computation will take excessive time to converge, too large and the solution may rattle near convergence and fail to reach a precise solution. The value of α depends on several factors. For images with equal distortion strengths (and because transformations are calculated from the image’s numerical gradients), α is proportional to the signal amplitude. Equally, α is inversely proportional to pixel-width squared, as the finer sampling reduces the numerical gradient and also requires more pixel translation for a fixed real-space lateral offset. The precise value of α can be optimised by evaluating the number of iterations to reach convergence ,but values between three and seven have been found to be reasonable in tests to date for images normalised in the dynamic range of zero-to-one and with approximately 20 pixels per atomic feature separation. If the solution converges very slowly, the user may increase the value of α, whereas if the offset diagnosis solution ‘bounces’, the value should be reduced.

Using the diagnosed transformation field, the experimental image is resampled over new grid points to affect this transformation and yield the intermediate image, I’ n . Now, we have a new image, but this is only partly registered, and so I’ n , is analysed again iteratively to ‘build up’ the full displacement diagnosis. Once complete, we move to the next experimental image in the series.

At the outset, we start with the assumption that the raw frames may be distorted, and so, it is also reasonable to assume that the reference image, the average over the frames, may be imperfect. As the low-frequency scan distortions are generally uncorrelated (random) between frames, then this blurring is sufficiently isotropic and unbiased. To achieve the best possible non-rigid results, the distortion-corrected frames of the first iteration are reused to create a new reference image and the process repeated. This has implications for the strategies chosen in the data collection itself, as it is preferable to have a sufficient number of frames contributing to the averaged reference image. To achieve this, repeated fast imaging is preferred over fewer slow frames. Clearly, there is an upper limit to the speed of the individual frames as sufficient SNR must remain for both the rigid and non-rigid registration steps. When images change nature rapidly because of sample damage [22], phase change [21] or though focus [24], taking the average of only the neighbouring frames and not the whole series is more appropriate.

Importantly, when the data are registered on the following iteration, it is the totally raw frames that are used to prevent the introduction of any ‘multiple-resampling’ artefacts. For high SNR data with limited scanning distortions, two reference update iterations may be sufficient; for lower SNR data or data with more significant distortions, five or more reference updates may be needed.

In addition to this base non-rigid registration method, we have incorporated several other features to increase the accuracy of the result whilst minimising the computational time needed. These are described in the Algorithm optimisations and limitations section.

Transformation fields for serial imaging

It is always necessary to exercise caution when registering large numbers of experimental images to avoid the introduction of unwanted artefacts [11]. This is especially true for non-rigid registration, where the potential for misregistering noise and artefacts becomes greater (see Additional file 1). Conventionally, to reduce the risk of introducing artefacts, the incremental displacement field is smoothed very heavily during the iterative diagnosis stage [18], often so much that this approaches an affine-like transformation field [7]. This can prevent local features such as defects or edges becoming corrupted by the registration but also limits the distortion correction to very diffuse long-range oscillations imparting a very restrictive limit to the distortion frequencies that are possible to compensate.

Instead, to reduce the risk of registration artefacts being introduced, we can introduce prior knowledge based on the technological implementation of scanning microscopes themselves. In these instruments, the scan speed along the so-called fast-scan direction may be two or three orders of magnitude faster than that in the slow-scan direction. As a result of this, the slow-scan direction is far more susceptible to low-frequency image distortions [6, 828]. This effect is also directly observed in experimental data, Fig. 3.

Fig. 3
figure 3

Comparison of transformation field constraints diagnosed form an ADF time series of [100] MgO (y-direction shown only). Top-left, a simple 10-pixel Gaussian blurring; top-right, the row-locked equivalent. Note how the row-locked solution faithfully diagnoses the scanning distortions (horizontal bands) with no ‘leakage’ of the crystallographic structure. For completeness, the result of locking the rows across the slow-scan direction is shown bottom-left, indicating that the scanning distortions are not dominant along this direction. The reference image of the final iteration is shown for comparison. Colour scale shows units of pixels, and grey numbers indicate the total calculation time

In Fig. 3, an example transformation field is shown for one frame of an ADF time series; first, as determined when using an unconstrained smoothing kernel. In this view, the fast- versus slow-scan behaviour is immediately apparent and as expected, we see that distortion diagnoses are far more similar within a fast-scan line compared with across lines [28]. Also shown is the result of taking the row-wise median whilst calculating the transformation field. This reproduces the unconstrained transformation field very well but importantly offers increased robustness to any local extremities. This approach is also more representative of the whole width of the field of view and eliminates problems where fast-scan banding remains observable even after correction [829].

This row-wise median screening or ‘row-locking’ imparts a powerful property to the non-rigid registration process, that is, that long-range smoothing is no longer relied upon to prevent transformation field discontinuities or artefacts. This allows for far more localised distortions to be diagnosed and corrected whilst maintaining artefact robustness. Furthermore, the fast-scan row-locking also prevents distortions from occurring at sample edges or interfaces. Two specific cases of nanoparticle edges and grain boundary interfaces are tested in the following sections.

Results

In this section, the proposed algorithm is evaluated on several key criteria; specifically, the sensitivity of the scan correction to localised distortions, the ability to correct small sample rotations and the fidelity of detail preservation at edges/boundaries.

Sensitivity to distortion, sample rotation and artefact robustness

In all non-rigid registration approaches, there is one essential parameter that often receives little attention, that is, the transformation field smoothing kernel [18]. In this section, the effect of varying the size of this kernel is evaluated explicitly; it is compared with the ‘row-locking’ alternative, and for the special case of loosely supported nanoparticles (that may rotate slightly with respect to the scan direction), a ‘row-fitting’ variant, Fig. 4.

Fig. 4
figure 4

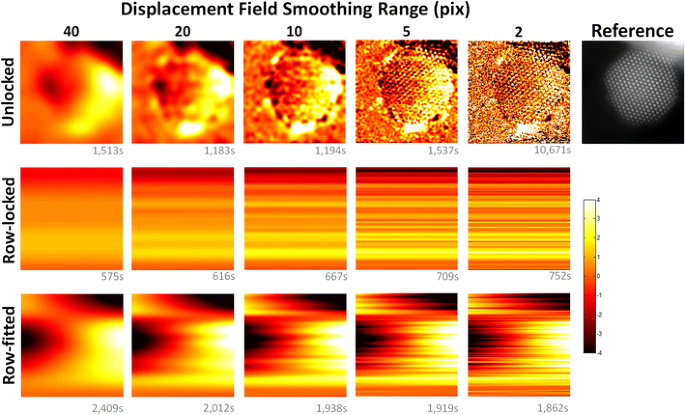

Comparison of example φ y displacement fields (φ x not shown) from one frame of an ADF image series of a [110] oriented PtCo bimetallic nanoparticle determined using the ‘unlocked’, ‘row-locked’ and ‘row-fitted’ approaches. From left to right, the smoothing kernel size is also varied. The colour scale shows units of pixels. The reference image is shown far right for comparison, and grey numbers indicate the total calculation time

Figure 4 exhibits several important trends, so we will begin by inspecting the unconstrained maps. The 5-pixel smoothed map clearly shows significant crystallographic information leaking into the diagnosis, the 2-pixel smoothing contains so many abrupt discontinuities it is unusable and even the 10-pixel smoothed map shows traces of lattice planes. This ‘leakage’ of crystallographic information into the displacement field is a diagnosis artefact, and the fields required smoothing to at least 20 pixels to eliminate the lattice entirely. In all these plots, the outline of the nanoparticle is clearly visible and there are several extreme ‘hot-spots’ around the perimeter where significant transformations (relative to the reference data) were diagnosed. These hot-spots correspond to atom positions that have moved or been sputtered through beam damage during the series, and such localised spatial transformations will significantly affect the image intensity data. We can also see bands similar to those in Fig. 3 running parallel to the fast-scan direction representing the genuine localised scanning distortions.

Applying the row-locking procedure yields the middle set of panels, and the similarities and differences between these two approaches are important. Now, the sample edges and their associated artefacts are no longer present, nor signs of the sample crystallography, whilst the distortion bands parallel to the fast-scan direction are preserved. Again, we see that no longer relying on long-range smoothing of the transformation fields to eliminate artefacts allows a 2-pixel smoothed row-locked diagnosis to be used instead of a 40-pixel smoothed unconstrained diagnosis. This is important because the transformation fields should contain no sample or crystallographic information at all. The instrumental distortion exists with or without the presence of the sample, so its diagnosis should not be dependent on it also. In theory, no smoothing could be used, but this small amount of 2 pixels improves robustness to shot noise.

A further key difference is observable between these and the unconstrained plots. The unconstrained φ y plots show a ‘ramp’ from left to right indicating that an additional affine transformation was present. The origin of this is small rotations of the loosely supported nanoparticle throughout the series, a problem which is difficult to avoid experimentally. Using the row-locked approach, these cannot be described, and hence, the sample rotation cannot be corrected. The solution to this is to use a constraint with an intermediate degree of restriction; here by fitting a low-order polynomial (linear in this case) to the fast-scan lines rather than simply locking them. This yields the third row of plots in Fig. 4. We now have transformation diagnosis, free from edge effects and lattice artefacts but which can also diagnose and correct small sample rotations.

To quantify the sample rotation and its correction, lattice angles were measured throughout the image series using the point projective standard deviation technique (PPSD) [30]. Peak finding was first performed on each image (using the algorithm in [2]) to yield a sparse array of points, and these were then Radon transformed and its standard deviation projected, Fig. 5. This PPSD measurement [30] reveals high-order crystallographic directions and is more sensitive to small changes in angle than the simple projective standard deviation measurement [5].

Fig. 5
figure 5

Lattice angles determined by PPSD analysis for the rigid-aligned data (top), and the row-locked (middle) and row-fitted (bottom) data. Plots show the range 0 °–180 °

The PPSD analysis of the rigid-aligned data reveals a rotational range of approximately 2.8 °, Fig. 5. All lattice plane angles rotate equally indicating that this is a true rotation and not a shear. In the row-locked case, lattice angles close to 0 ° and 180 ° (parallel to the slow-scan direction) are well corrected but lattice planes near parallel to the fast-scan direction are wholly uncorrected as expected. This is easily understood in terms of the row-locking of the φ y field which prevents image shear (or rotation) along that direction.

For the row-fitted method, the PPSD analysis reveals full correction of sample rotation across all lattice orientations. If we recall the reference-updating iterative procedure described above, the benefit of this rotation correction is further realised as the quality of the reference image also improves greatly after just one iteration.

Whilst this hybrid method has proven useful for nanoparticle time series registration, it should be noted that for more rigidly supported experimental samples, the more computationally efficient row-locking mode would be sufficient.

The artefact robustness of the row-locking/row-fitting procedure can be further inspected by comparing the results against the unconstrained method at free sample edges. The same effect is true at sample defects and interfaces such as dislocations or grain boundaries. Figure 6 shows an extreme enlargement of the edge of the particle analysed in Fig. 4.

Fig. 6
figure 6

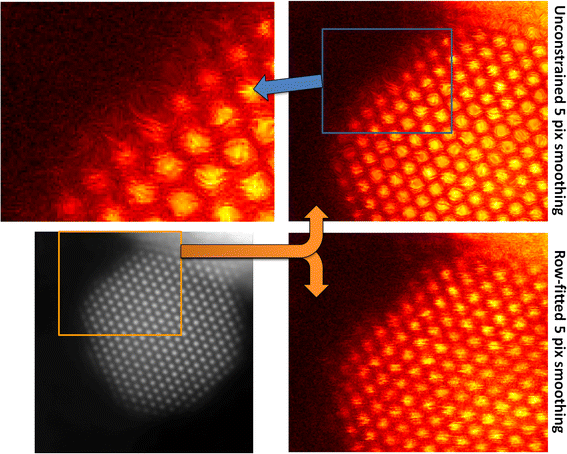

Enlargements from example non-rigid registration results corresponding to the transformation fields in Fig. 4. Top-right unconstrained and bottom-right row-fitted, both with 5-pixel smoothing. Top-left, a further enlarged view of the surface atoms with the unconstrained solution. Note the ‘fish-eye’ type distortions on the atomic columns in the bulk and the ‘horse-tail’ wispy elongations at the surface. All figures show the same colour scale

The top-left edge of the nanoparticle at the free surface shows significant artefacts from the registration of the frame using unconstrained methods. The origin of this lies in the attempt to register the individual frame to a reference that is the average frame. The result of this is that any genuine dynamic behaviour such as reconstruction, damage or sputtering is corrupted in the process. The atomic columns in the centre of the particle are also significantly distorted with a ‘fish-eye’ like appearance. This leads to a significant change in image intensity corrupting also any thickness or composition measurements.

The performance of the various methods discussed are summarised in Table 1.

Table 1 Performance evaluation of the rigid and non-rigid registration options discussed in the text

Summarising the results of Figs. 4 and 6 together in Table 1, we are left with a very powerful conclusion; it is impossible to define an unconstrained non-rigid transformation field that is both responsive to localised scanning distortions and free from artefacts. This problem is most noticeable at free edges of samples, yielding significant implications for nanoscale strain mapping, and is likely to be the precision limiting factor in such investigations [31].

Algorithm optimisations and limitations

A number of further optimisations were developed alongside those above:

  • Choice of global or local reference frame

  • Iterative approach and convergence detection for improved computation speed

  • Restoration of secondary signals and

  • Distortion frequency analysis

Choice of global or local reference image

In non-rigid registration, the choice of the reference image is crucial. In the accompanying code, two options are available to the user for choosing the non-rigid registration reference data, either global reference or local reference. In the case of an experimental time series (and in the absence of damage), we can assume the images are independent viewings of the same underlying structure. Here, the mean through the already rigid registered image stack can be used as a suitable reference image. Alternatively, if the form of the image is changing through the series, such as an experimental STEM focal series, it is better to use the mean of the two neighbouring frames as the reference. This is suitable so long as the focal steps are finely enough sampled that no drastic change in the optical transfer function has occurred in the step. This neighbour average may also be more suitable if the experimental time series shows a significant amount of sample change, say from electron-beam damage or dynamic surface refaceting.

Convergence detection for improved computation speed

Within this nested iterative regime, the software is optimised to spend no longer than necessary performing each stage. To achieve this, an exit criterion has been added to the inner most loop (the distortion diagnosis) to exit when a certain precision of registration has been achieved. If the mean of the incremental offset maps falls below some certain threshold, we can say that the registration has converged. In general, a value of 0.01 pixels represents a balance between computational speed and precision. In the accompanying code, the user may vary this parameter freely but is recommended not to go below 0.001 pixels as excessive computational time may result for no image quality benefit.

For high-throughput analysis of data algorithm, speed is clearly important. For the 512 × 512 pixel raw data shown in Figs. 3 and 4 with 31 and 57 frames, respectively (three passes, 0.01-pixel exit criterion), the total calculation times are shown alongside each condition. Generally, this was of the order of a few minutes. As an extreme test of the MatLab™ code, a series of ten 4k STEM images (4096 × 4096 pixel) were registered to an exit target of 0.05 pixels with three outermost update iterations. The total processing time was 1872 s (~31 min). For the STM data presented later, the equivalent processing time was 66 s. All times correspond to an Intel™ i7-870 at 2.93 GHz personal computer. Further speed improvements could likely be realised if the MatLab™ code were migrated to a multi-core or GPU deployment.

Restoration of secondary signals/spectral data

As the probe-sample interaction in the STEM generates several signals simultaneously, several data sets can be recorded simultaneously. In all cases, the same image/sample drift relationship exists (rigid offsets) along with the same localised probe distortions (non-rigid offsets). In this way, multiple signals can be reregistered from the diagnosis performed on one. This secondary signal may be from another imaging detector, or equally x-ray or energy-loss spectral data. Where spectral data is being used, it is often of a far lower signal-to-noise ratio than the imaging data. This matching of the registration offsets allows for the offsets to be diagnosed from a high SNR data but applied to all.

Distortion frequency analysis

Image distortion is always best eliminated at source rather than via image processing. Previously, we have shown that analysis of offsets along the fast-scan direction allows for very high-frequency distortions, around 2 kHz, to be analysed (see supplementary information of [2]). Extending the concept here to an analysis of the slow-scan rows, it is possible to analyse distortions of a very low frequency, around 0.2–3 Hz. Hopefully through such analysis, it is possible to identify the source of the distortion at its source in the EM suite, possible candidates at these low frequencies may be airflow or seismic vibrations.

Limitations

One limitation of the gradient descent method that should be explicitly stated is that there exists the potential to become ‘stuck’ in local minima. Without computationally expensive multi-scale approaches [6], this cannot be avoided and imparts a practical consideration that the magnitude of any low-frequency scan distortion should not be larger than one half-unit cell within the size of the smoothing kernel range. If this is the case, then, not only is image registration unsuitable but also it is not advised, as a distortion of this magnitude should really be resolved at an instrumental level. Fortunately, such large distortions are rarely observed, and computationally efficient methods can be used.

Lastly, it should be noted that if the effects of kHz frequency distortions are very strong, these can persist even after correction as they are often strongly correlated along the fast-scan direction. Approaches to rotate the acquisition will help make the appearance of these effects more isotropic [5], but ideally, these should be sought out at the environmental level.

Discussion

STEM ADF image intensity reliability

The so-called quantitative ADF makes use of image data recorded on an absolute scale and expressed in units of fractional beam intensity [32]. Using this method, it is possible to count atoms either by comparison with simulation [33, 34] or by purely statistical methods [35]. However, in either case, it is the mean or integrated signal that is the metric used for comparison and this is susceptible to corruption by low-frequency scan distortion. These distortions act to inflict a local change in magnification leading to corruption of the quantitative signal.

To investigate this effect, simulated images of gold bi-wedges 1–12 atoms thick were deliberately distorted with low-frequency sinusoids in both the x and y directions similar to those observed experimentally (1 and 0.75 pixels peak-peak amplitude at 0.75 and 1.15 Hz, respectively) Fig. 7. Poisson-distributed image noise was also added to reflect a realistic dose (105 eÅ−2, ≈1061 e/pixel). This process was repeated over multiple crystal orientations (equivalent to STEM scan rotations) to avoid possible orientation bias. For each scan rotation, 15 images with unique distortions and noise were created as an analogue of an experimental time series. These time series were then non-rigid registered using the mean over all images as the reference data.

Fig. 7
figure 7

Stages in testing the fidelity of quantitative image intensity data, first creating distorted and noisy images (middle) before restoring them (right). Illustration shows crops from each stage, but a full-size version is included in the supplement

After registration, the scattering cross-sections of the atomic columns were calculated [34] and histograms of these are shown in Fig. 8. To each histogram, a Gaussian mixture fit was computed with 12 components so that the mean and standard deviations of the cross-sections could be analysed [36].

Fig. 8
figure 8

Histograms of the column-wise scattering cross-sections from the undistorted simulated images (top), the distorted simulated images (middle) and from the first frame of the restored time series (bottom). Where a fitted profile is shown (in red), this represents a Gaussian mixture fit with 12 components

Figure 8 (top) shows the clearly isolated peaks of the undistorted image. From this, we can conclude that for images whose performance is only limited by Poisson noise, we expect to be able to count atoms readily from the STEM image intensity using either simulation library or statistical methods [36]. Figure 8 (middle) shows the equivalent histogram after the introduction of scan distortion. Here, we now see significant broadening and overlap of adjacent Gaussian components. For this distribution, reservations would exist with atom-counting assignments greater than four atoms [37].

Following the restoration of the simulated time series, the first frame was taken and reanalysed. Importantly, to ensure a fair fixed-dose comparison, only the first frame of each series was analysed for the histograms. After restoration, the Gaussians fitted to the histogram show a far narrower width (standard deviation) and therefore greatly reduced overlap. Here, atom-counting assignments would be accurately possible up to around nine atoms thickness, and reasonably reliable up to perhaps 12 atoms, a great improvement on the previous case.

A more quantitative means to evaluate the importance of scan distortions in quantitative ADF is to examine the standard deviations of the 12 Gaussians fitted in Fig. 8, and these are shown in Fig. 9 (data table in Additional file 1). The overlap of neighbouring Gaussian components indeed defines the limits of atom counting with single-atom sensitivity [3638].

Fig. 9
figure 9

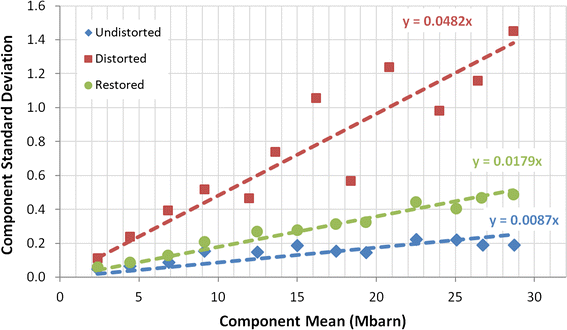

Comparison of component mean and standard deviations from the histogram analysis in Fig. 8

First, considering the undistorted (as-simulated) images, we find that the standard deviation increases with the component mean. Here, a straight line has been fitted but for images dominated by Poisson noise only, we may have expected a √mean relationship. Next, after inclusion of the scan distortion, we see that the standard deviation is increased by around a factor of 5. As Fig. 8 shows, this was improved after non-rigid registration with 77 % of the additional standard deviation now removed.

These results suggest that compensation of low-frequency scan distortion improves the fidelity of quantitative ADF image intensities leading to the potential to measure thickness or composition more accurately at atomic resolution. This need not necessarily demand any additional beam dose being required as previous work has shown that beam dose may be divided amongst a few experimental frames and these frames analysed collectively with equal accuracy [38]; in fact as demonstrated above, distortion compensation of a set of a few frames is likely to deliver a slightly improved precision over a single frame with the same total dose.

ADF image feature position reliability

In the previous section, we saw that the new non-rigid registration method can improve the reliability of the integrated intensities of atomic columns. However, for many applications, such as structural or strain analyses, the positions of atomic columns are important and this is what is discussed here. Figure 6 shows how unconstrained non-rigid transformation can corrupt the edge detail of nanoparticle samples, but the same could occur at interfaces within samples.

As describe above, non-rigid registration requires multiple frames to operate and in this sense contains the redundant information necessary to separate the genuine sample data from the effects of distortion. When presented with redundant or overdetermined data, statistical decomposition methods can also be used to extract the key varying components within the data set, such as principal component analysis (PCA) [39]. This is related to, but not the same as, noise filtering when used to describe all the information in a data set using the fewest number of principal components that contain meaningful information content.

In the example shown here, we use a [001] 6 ° symmetric tilt grain boundary in strontium titanate SrTiO3 as an example. Fifty-two images were recorded along the grain boundary from which 212 dislocations were identified to leave a set of cropped images. Although these dislocations are periodically spaced along the boundary plane, structural variations have been found in the core structures. Alternating dislocations have either a left- or right-handed nature depending on to which side the extra half-plane meets the next dislocation in the boundary (see Additional file 1: Figure S5); equally, we may expect small variations in the occupancy of sites in the very centre of the core. Using these data, a PCA analysis was performed using the MSA514 plug-in for ImageJ where the stack of images serve as the input.Footnote 1

Immediately upon producing the scree plot (see Additional file 1), differences can be seen between the rigid-only and the non-rigid registered data sets. The scree plots (Additional file 1: Figure S6) show reduced dimensionality of the non-rigid registered data. In the rigid-only case, around twice as many components were required to describe the data above any given eigenvalue threshold (Fig. 10). To explore the differences further, the first few components for each case were plotted, Fig. 10 (larger versions of these sub-plots are included in Additional file 1). In Fig. 10, the first six components are shown for the rigid-only case and the first three for the non-rigid, and beyond these components, no clear interpretation in terms of sample geometry was obvious and the images displayed mostly noise.

Fig. 10
figure 10

Comparison of the first six principal components of the rigid registered data set versus the first three components of the non-rigid registered data set. Arrowhead annotations indicate the feature-shift polarity seen in the components. Image width is 4.6 nm

If we consider the component maps for the rigid-only case, we see that in many cases, the features show a polarity, that is, there is a white and dark peak pair associated with one another (compare with [4]). This translates to the component describing a shifting of the atomic column positions in the original images. However, we have to be cautious with the interpretation of these component maps because of the way that STEM data is recorded. It has been shown previously that in the presence of image drift, the true form of the sample can be modified by some form of affine transformation [14]. Now, in the context of these affine transforms, let us look again at the first three components from the rigid-only set and the first component of the non-rigid set. In all of the first three components from the rigid-only set, we see a band through the centre of diffuse grey, that is of little significance. Above and below this mid-line, we see two distinctly different behaviours in the feature polarity (real-image feature shift). The first and third components exhibit a shearing-type behaviour inclined at 45 ° from the horizontal and 90 ° from one another; the second again shows a similar shearing-type behaviour but now roughly parallel to the fast-scan (horizontal) direction. These displacements are in fact the result of image drift and/or scan distortion. The observant reader may wonder why there is not a fourth shearing-type component perpendicular to the second and this will be discussed later. These three distorted components are shown alongside the first component from the corrected data set. In fact, if the vectors shown on the rigid-only maps 1–3 are added together, they will close and yield minimal overall displacement. This result is consistent then with the first corrected component showing almost no polarity—it merely shows the variation from the mean of the white atomic columns and dark dislocation core.

The next comparable components are the fourth rigid-only and the second non-rigid; here, we see a component that describes the correlation between an increased occupancy of the terminating half-plane with an outward displacement of the adjacent planes. This is consistent with elastic theory and offers a useful route to studying this occupancy-strain relationship.

Lastly, the fifth and sixth components of the rigid-only data set and the third component of the non-rigid are closely comparable. In this component, we see the effect of the previously mentioned left- or right-handedness of the staggered dislocations. Unfortunately, this useful genuine information has become conflated in the rigid-only case with the fourth and final image drift distortion described earlier. Now, in the presence of image drift, another additional component becomes necessary to describe this combination of the displacements and image drift.

Application to scanning tunnelling microscopy

The methods demonstrated for registering STEM data are equally applicable to other scanned probe microscopies such as atomic force microscopy (AFM) or scanning tunnelling microscopy (STM) where careful image reregistration is equally important. Here, thermal drift is again problematic [40] and this can often be corrected using affine transformations [3]. Again, the same prior knowledge regarding the fast-scan behaviour can be utilised to improve the registration performance and using the robust ‘row-locking’ technique, it is possible to perform robust non-rigid registration capable of outperforming the more restrictive affine or polynomial unwarping.

To demonstrate this, an example STM time series data set was registered (original data set details as in [41]). The registration of scanned physical, as opposed to electron, probe microscopy is complicated by one additional factor—that of tip-height artefacts. This manifests itself as regions of brighter and darker bands representing the temporary offset in the height of the scanning tip (or bright/dark rings in a spiral scan [16]). Again, as for lateral distortions this is heavily correlated along the fast-scan direction and can be corrected as such [15]. To correct for tip-height errors, the data was rigid registered, and then, the median height was calculated row-wise. For each image, this was then corrected to be brought to the mean of the median heights over the whole of the image series. After this height correction, the data were non-rigid registered using the ‘row-locking’ feature described earlier; the result of correcting the data series is shown in Fig. 11. A movie of the raw and registered data is provided in Additional files 2, 3, 4, 5, 6, 7 and 8. The reader may wish to compare these with the manual registration performed previously and available in the supplementary data of [41].

Fig. 11
figure 11

a An example frame from an STM image series of SrTiO3 (001) trilines [41] (field of view = 40 × 40 nm2) and b the restored image from the frame series. Line profiles correspond to the regions indicated by the white lines. Note that both the tip-height artefacts (horizontal bright/dark bands) as well as the lateral distortions have been corrected. The periodicity along the ridge of the triline (≈2 Å spacing) is directly interpretable after restoration

After correction of the tip-height and low-frequency lateral distortions, it is possible to either play back the movie of the data (see Additional files 2, 3, 4, 5 and 6) and view the dynamic processes without distraction or to average through the image series to improve signal-to-noise ratio (SNR) for improved measurement precision (Fig. 11b).

Conclusions

A single serial-acquired image (STEM, STM, AFM etc.) combines genuine sample information and the effects of possible scanning distortions. Recording multiple frames of serial-acquired data yields a separable data set with information about both the sample and any scanning distortions which can be diagnosed and corrected by non-rigid registration. In experimental data, scanning distortions were found to be highly correlated along a fast-scan row, but far more varying between rows (in the slow-scan direction). This phenomenological description was used to design new ‘row-locked’ and ‘row-fitted’ distortion field constraints that alleviate the need for long-range smoothing kernels. These approaches were tested and found to deliver more localised image correction without the introduction of artefacts at sample edges or interfaces.

The distortion correction technique was tested in three case studies: ADF intensity quantification, interface structural interpretation and STM resolution/SNR. In all cases, the precision and interpretability of the data were improved. Further optimisation of the improvement in ADF intensity- and strain-precision as a function of the scan speed, electron dose and optimum number of frames is an ongoing study. The software described in this work is available free of charge for academic/non-commercial use from www.lewysjones.com.
